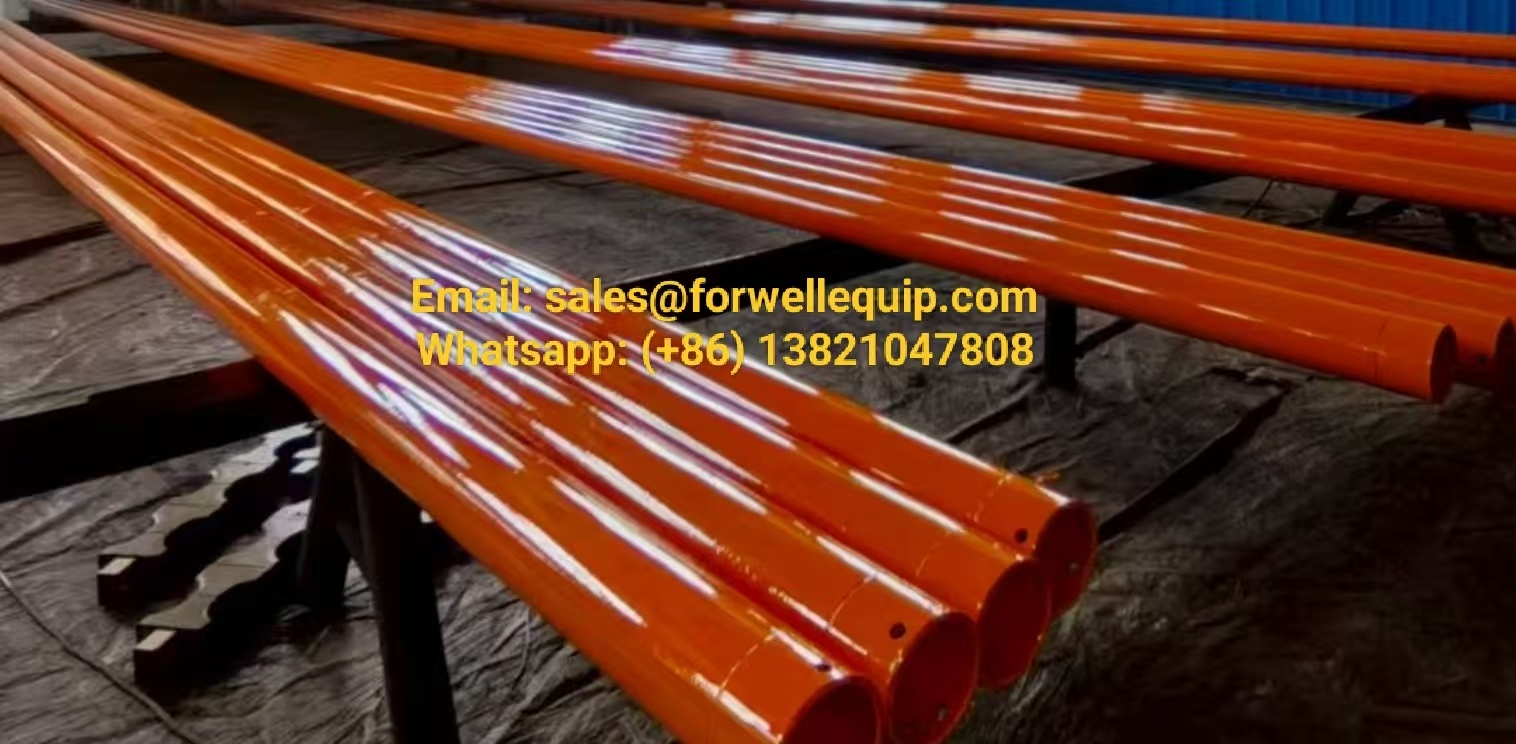

Washpipe FJWP Box x Pin Washover TSWP drive subs
The Washpipes produced are made of 4140,4145 family of low alloys steels in the heat-treated (quenched & tempered) condition with a minimum yield strength of 120 ksi.The Washpipe thread connection is FJWP and TSWP which are two step double shoulder connection guarantee the higher stength torque and thread make-up ability.
Washpipes is a tool for resolving stuck drill accidents,play a role in flushing salt and sediment accumulation in the pipe, and removing blockages useage.

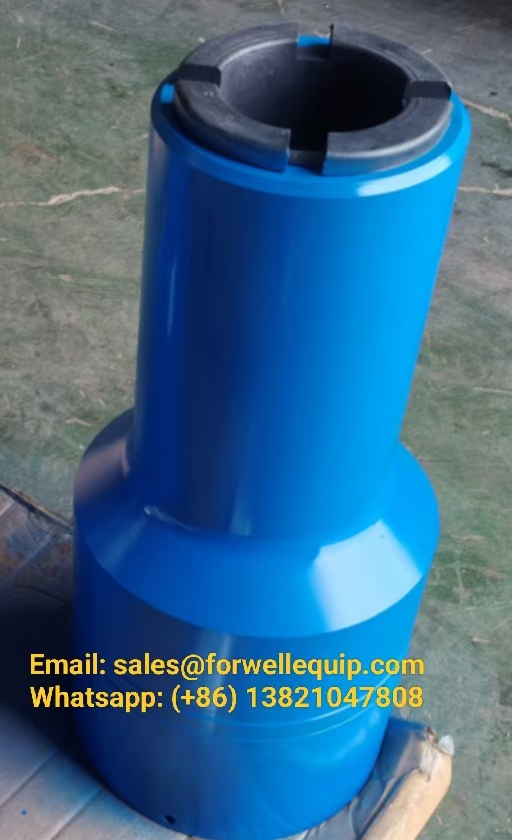

The washover pipe including the lift plug,drive subs,washover shoes extension,washover safety joints,FJWP top and lower connectors,sub tops and sub lower,Barrel upper,Hollow Pin Tap accessories.
Forwell Washpipes Feature Advantage:
The minimum gap between the wellbore and the Washpipes is 0.5", and the minimum gap between the washover pipe and the fish is 0.126". The formation is soft,The washpipe can be appropriately lengthened, while in hard formations, only one washpipe is used at a time.

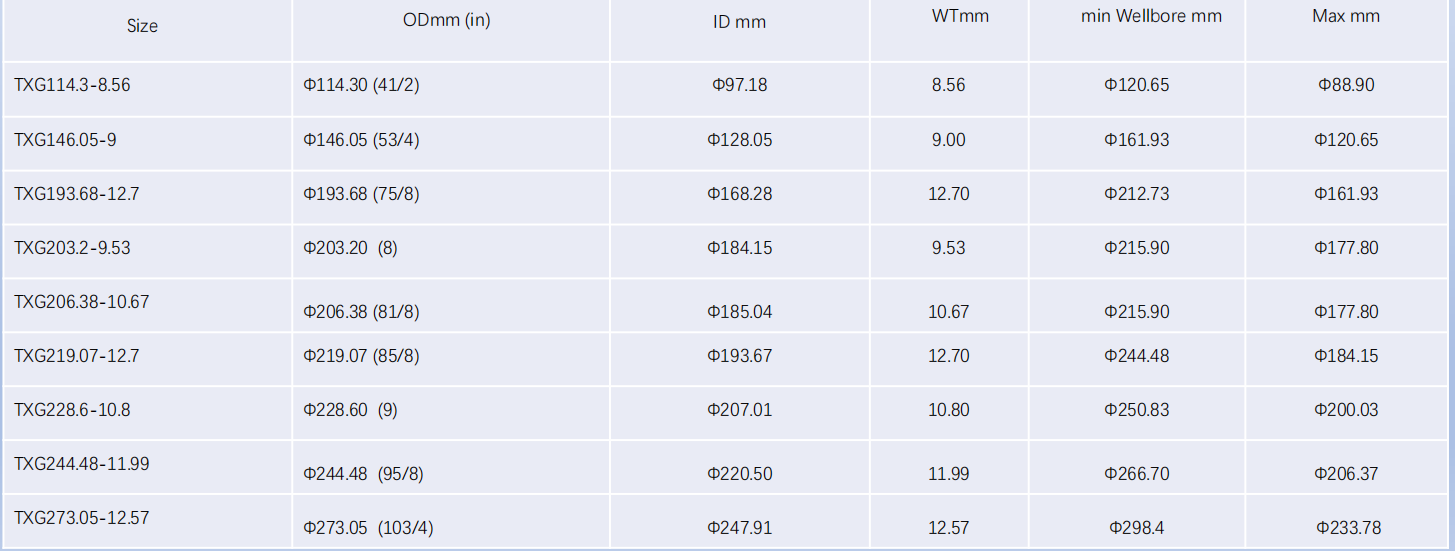

Forwell Washpipes Specification:
