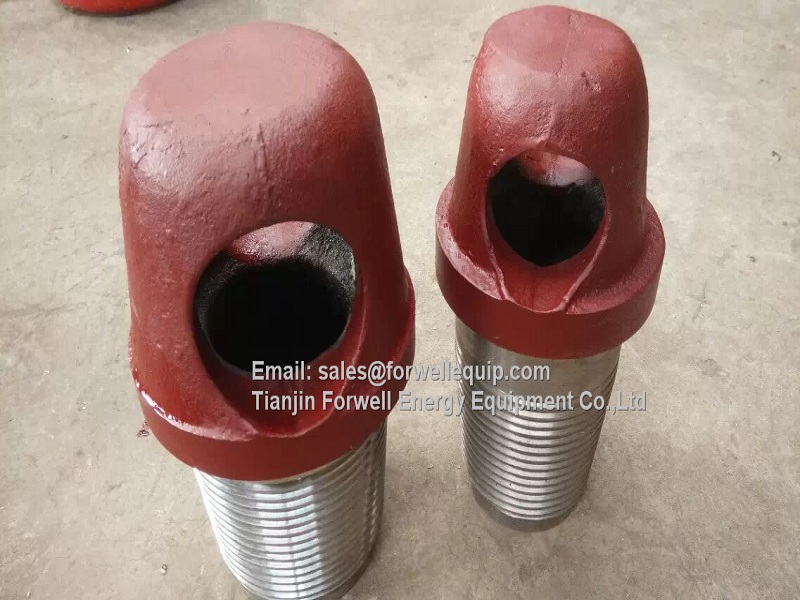

Cast Steel Lifting Bails 4-1/2" Reg box
Lifting bails are commonly used to handle tool joints, stabilizers, subs, drill pipe, drill collars, and drill bits; all of which are used in the oil and gas industry.both the threads and shoulders are precision machined and feature phosphate coated threads or sand blasting or QPQ process for added corrosion protection. Besides, Forwell company maintain complete traceability by providing unique serial numbers stamped into or stencil printing each lifting bail.Contact us:Tianjin Forwell Energy Equipment
Lifting Bails Technical Features:
Thread | O.D. (mm) | Length (mm) | Thread | O.D. (mm) | Length (mm) |
7-5/8 REG Pin | Φ210 | 290 | 7-5/8 REG Pin | Φ230 | 290 |
6-5/8 REG Pin | Φ190 | 280 | 6-5/8 REG Pin | Φ200 | 280 |
NC50 Pin | Φ155 | 270 | NC50 Pin | Φ160 | 260 |
NC46 Pin | Φ150 | 270 | NC46 Pin | Φ160 | 260 |
NC38 Pin | Φ115 | 260 | NC38 Pin | Φ120 | 270 |
NC31 Pin | Φ100 | 210 | NC31 Pin | Φ120 | 220 |
2-3/8 REG Pin | Φ80 | 190 | 2-3/8 REG Pin | Φ110 | 200 |
NC26 Pin | Φ89 | 200 | NC26 Pin | Φ110 | 200 |
3-1/2 REG Pin | Φ100 | 220 | 3-1/2 REG Pin | Φ130 | 270 |
4-1/2 REG Pin | Φ145 | 260 | 4-1/2 REG Pin | Φ160 | 260 |
2-7/8 REG Pin | Φ80 | 220 | 2-7/8 REG Pin | Φ80 | 220 |
